Boeing 787-8 (78P)

Only representative aircraft types are listed.
Departure/arrival times, flight No., aircraft type, equipment and operating airline are subject to change without prior notice.

Back to List

335 seats

Galley

Bar

Monitor

Emergency Exit

Lavatory

Wheelchair Accessible Lavatory

Lavatory with a table for diaper change

Lavatory with a multi-function bidet

Emergency exit row seat

No Window Seat

Reclining Not Available

Armrest Non-movable seat

Table

*

Only typical seat configurations are shown.

Seatmap Information

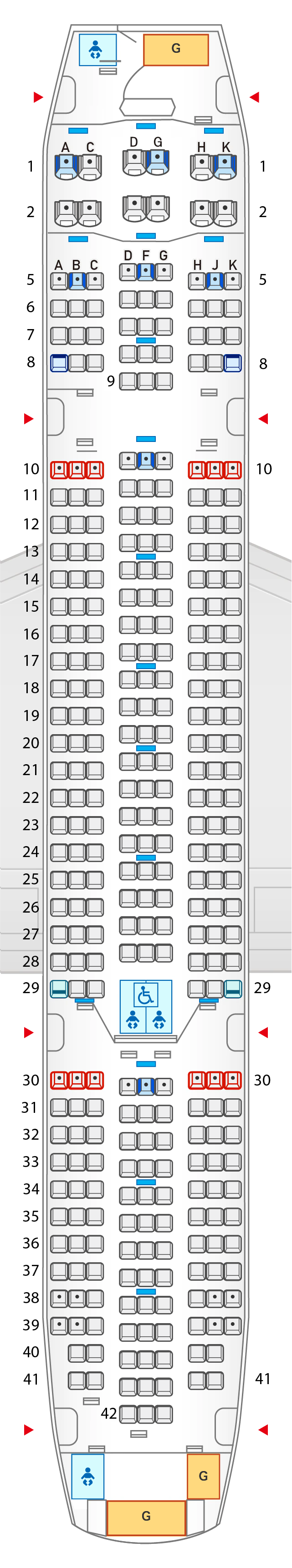

- This is the seat map for the 335-seat B787-8.
  There are 12 Premium Class and 323 Economy Class seats. Seat rows are numbered from 1 to 42.
  Emergency exits are located on both sides at the front of the cabin, both sides behind row 9, both sides in front of row 30, and both sides on row 42.
- Premium Class seats are in rows 1 and 2.
  The seat layout from left to right is A, C, aisle, D, G, aisle, H, K. Armrests are non-movable for all of these seats. Shared monitors are installed in front of row 1.
- Economy Class seats are in rows 5 to 42.
  The seat layout from left to right for rows 5 to 8, 10 to 28, and 30 to 39 is A, B, C, aisle, D, F, G, aisle, H, J, K. The seat layout from left to right for rows 9 and 42 is D, F, G. The seat layout from left to right for row 29 is A, B, C, aisle, H, J, K. The seat layout from left to right for rows 40 and 41 is A, C, aisle, D, F, G, aisle, H, K. Seats A, B, C, H, J, K in rows 10 and 30 are emergency exit row seats. Armrests are non-movable for all seats in rows 5, 10, and 30, and seats A, B, J, and K in rows 38 and 39. Seats A and K in row 29 do not recline. Seats A and K in row 8 do not have a window. The shared monitors are in the front of row 5; in front of seats D, F, and G in row 8; in front of seats D, F, and G in row 10; in front of seats D, F, and G in row 14; in front of seats D, F, and G in row 18; in front of seats D, F, and G in row 21; in front of seats D, F, and G in row 25; in front of row 30; in front of seats D, F, and G in row 34; and in front of seats D, F, and G in row 38.
- A wheelchair-accessible lavatory is located behind seats D, F, and G in row 28. Lavatories equipped with a diaper changing table are located in front of seats A and C in row 1 and behind seats D, F, and G in row 28; and behind seats A and C in row 41.
  Galleys are located at the front of the cabin and at the back of the cabin.

Seat Details

Premium Class

Premium Class Seat Details

* Some aircraft are equipped with personal monitors.

Economy Class

Economy Class Seat Details

Spec

Aircraft for Domestic Flights

Seats	335 seats (12 seats)
Overall Length	56.7 m
Wing Span	60.1 m
Tail Height	16.9 m
Typical Cruise Speed	910 km/h
Cruising range	4,890 km
Maximum operation altitude	13,100 m
Maximumtake off weight	172.9 ton
Engines	Trent 1000-H
Thrust of engine	26,300 kg X 2
Maximum Fuel Capacity	126 kl
